ESP32 OTA updates from a browser: compile, push, roll back

The board is on a roof, in a greenhouse, behind a wall panel. You need to change one line. Until now that meant a laptop, a USB cable and a ladder.

Plynx 1.2.4, released on 18 August 2026, closes that loop. Pair the board once, write the sketch in a browser on any computer, press Upload, and the board flashes itself over Wi-Fi. It is free, it works on ESP32 and ESP8266, and the dashboard and the firmware can live on your own server.

The flow, end to end

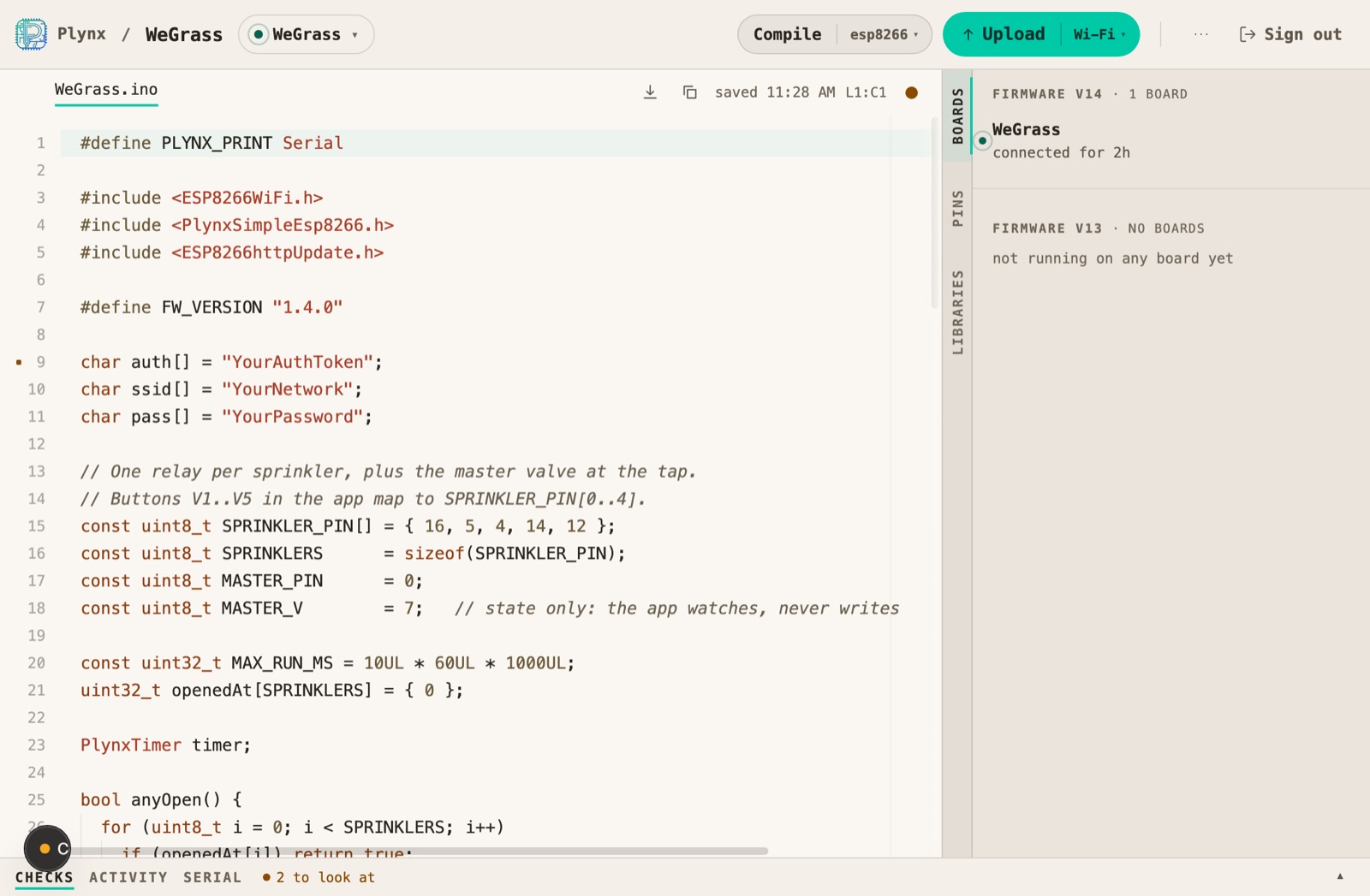

1. Pair. Open editor.plynx.cc, scan the QR code from the Plynx app. Your project and its sketch appear in the browser.
2. Write. A real keyboard, syntax highlighting, your board’s pin map in the side panel.
3. Compile. The build runs on the server, not on your machine. Nothing to install, no toolchain, no core downloads.
4. Upload. The binary goes to the board over Wi-Fi.

Measured against the production server on 18 August 2026, with a sketch of about a hundred lines: 9.2 seconds to compile for ESP8266, 34.5 seconds for ESP32. The ESP8266 binary that came out, 298 KB, uploaded in 3.2 seconds, and the push to the board took under a second. Compiling is the slow part, and it is slow because it is a real Arduino build, not a syntax check. The same sketch built for ESP32 is around 900 KB, which is worth knowing before you look at the storage limits further down.

What the sketch needs: nothing

This is the part people expect to be hard. There is no OTA code to add, no second sketch, no ArduinoOTA.begin(). Install the Plynx library 1.0.5 or later from the Arduino Library Manager and the handler is already in the build: the ESP32 and ESP8266 headers include it at the bottom of the file.

A complete sketch that can be updated over the air looks like this, and the only thing it does is switch an LED:

#define PLYNX_PRINT Serial

#include <WiFi.h>
#include <PlynxSimpleEsp32.h>

char auth[] = "YourAuthToken";
char ssid[] = "YourNetwork";
char pass[] = "YourPassword";

PLYNX_WRITE(V0) {
  digitalWrite(2, param.asInt());
}

void setup() {
  Serial.begin(115200);
  pinMode(2, OUTPUT);
  Plynx.begin(auth, ssid, pass);
}

void loop() {
  Plynx.run();
}

Flash that once over USB. Every version after it arrives over the air.

One thing to check on ESP32, because it fails silently: keep a partition scheme that has two app slots, which is the default. A “No OTA” or “Huge APP” scheme compiles perfectly and leaves the board with nowhere to put an update, and the only symptom is that the board reports it cannot take one.

When the update is bad

Any OTA article that skips this part is selling something. A firmware you cannot reach is worse than a firmware you have to walk to.

On ESP32 the new firmware has to check in. Before rebooting into the new image the library writes a pending flag. The image has 60 seconds to complete an authenticated handshake with the server; if it does not, the library rolls back to the previous firmware and restarts. Three unconfirmed boots and it gives up on the new image for good.

Know the edge of that guarantee, because it decides whether you need the ladder: the watchdog runs inside the Plynx loop. It covers the common disaster, a firmware that boots and runs but can no longer reach the network. It does not cover a firmware that crashes or hangs before Plynx.run() is ever reached. That one needs the cable.

On ESP8266 there is no automatic rollback, and there cannot be. The 8266 updater is single slot: at boot the new image is copied over the old one, so once a broken-but-booting firmware is installed, nothing on the chip can undo it. What the library does is refuse to start the update when there is not enough free sketch space. Test ESP8266 builds on a board on your desk before you send one to a board you cannot reach.

The download is checked, and here is exactly how far that goes. The server sends the image URL together with its SHA256, and the library hashes the stream chunk by chunk as it writes to flash. The transfer itself is plain HTTP, so that hash is the only thing protecting it, and a frame that arrives without a valid hash is flashed unverified. The hash proves the download arrived intact, not that the server is who it claims to be, since URL and hash travel in the same frame. Two things raise the bar at no cost: nothing is flashed before the session handshake has completed, and the download host is pinned to the server the sketch is configured against. A fleet that needs real authenticity should run an authenticated link, or override the OTA handler with one that checks a firmware signature.

Versions, and a board to try them on

The editor is not a text box with an Upload button. Every binary you upload becomes a version, with its size, its SHA256, and a note you write when you upload it.

Versions live on a line, and boards follow a line. That gives you a workflow:

• Tick one board and upload only to it. Mark it as your test board and it goes first when a version is promoted.
• If it survives, promote the version and every board in the project that follows the line gets it, skipping any whose chip or free space does not fit.
• Delete old versions to free space. There are guardrails: a version a board is running, or waiting for, or the last one left on a line, stays where it is.

A board that is offline is not a problem. The update waits and goes out the first time that board connects again. I tried exactly this against production today: the push answered with a conflict rather than a false success, and a message that says the thing you want to read, that the update stays pending and is sent automatically when the board reconnects.

What it does not do

• The first flash still needs a cable. The board has to run the library once before it can be reached wirelessly.
• ESP32 and ESP8266 only. The OTA handler is built on those two cores. An Uno over serial is not going to update itself over Wi-Fi.
• No automatic rollback on ESP8266, and on ESP32 only for firmware that gets as far as running the library.
• Compiling on the public server means your sketch is sent to it. If that is not acceptable, compile locally and upload the binary instead.

Your server, your firmware

The Plynx server is open source and runs on a Raspberry Pi. The dashboard, the firmware storage, the version list and the push to the board all work there, with nothing leaving your network.

Compiling is the exception, and it is worth being straight about it: the server does not carry a compiler. It hands the saved sketch to a separate build service, and that service is off by default in the self-hosted build. So on your own server the loop is: compile in the Arduino IDE the way you always have, upload the .bin to the version list, and push it to the board. Everything after the compiler is the same. The self-hosting guide covers getting the server itself up.

On the public server each account gets 5 MB of firmware storage, at most 20 stored versions, and 2 MB per binary. With ESP32 builds around 900 KB, the storage is usually what you notice first, and old versions are there to be deleted.

Questions people ask

Do I still need a USB cable?

Once, for the first flash. After that the cable is for power.

Does it work on ESP8266 too?

Yes, with one difference that matters: no automatic rollback. See above.

What if I flash something broken?

On ESP32, if it still runs the library it reverts by itself after 60 seconds. If it crashes earlier, or if it is an ESP8266, you walk to the board.

Can I press Upload while the board is offline?

Yes. The update waits and goes out when the board reconnects.

What does it cost?

Nothing. There is no paid tier and no subscription.

Do I have to use your server?

No. Self-host it, compile locally, and the rest of the flow is unchanged.

Try it

Install Plynx from the App Store, add the library from the Arduino Library Manager, flash a board once, then open editor.plynx.cc and pair it. The getting started guide walks the first project. If you want to see what people build with this, the irrigation controller has been running a garden for five years.
